Free Carnetic 316 Vertical Axis Wind Turbine (VAWT) PDF design files under CC BY

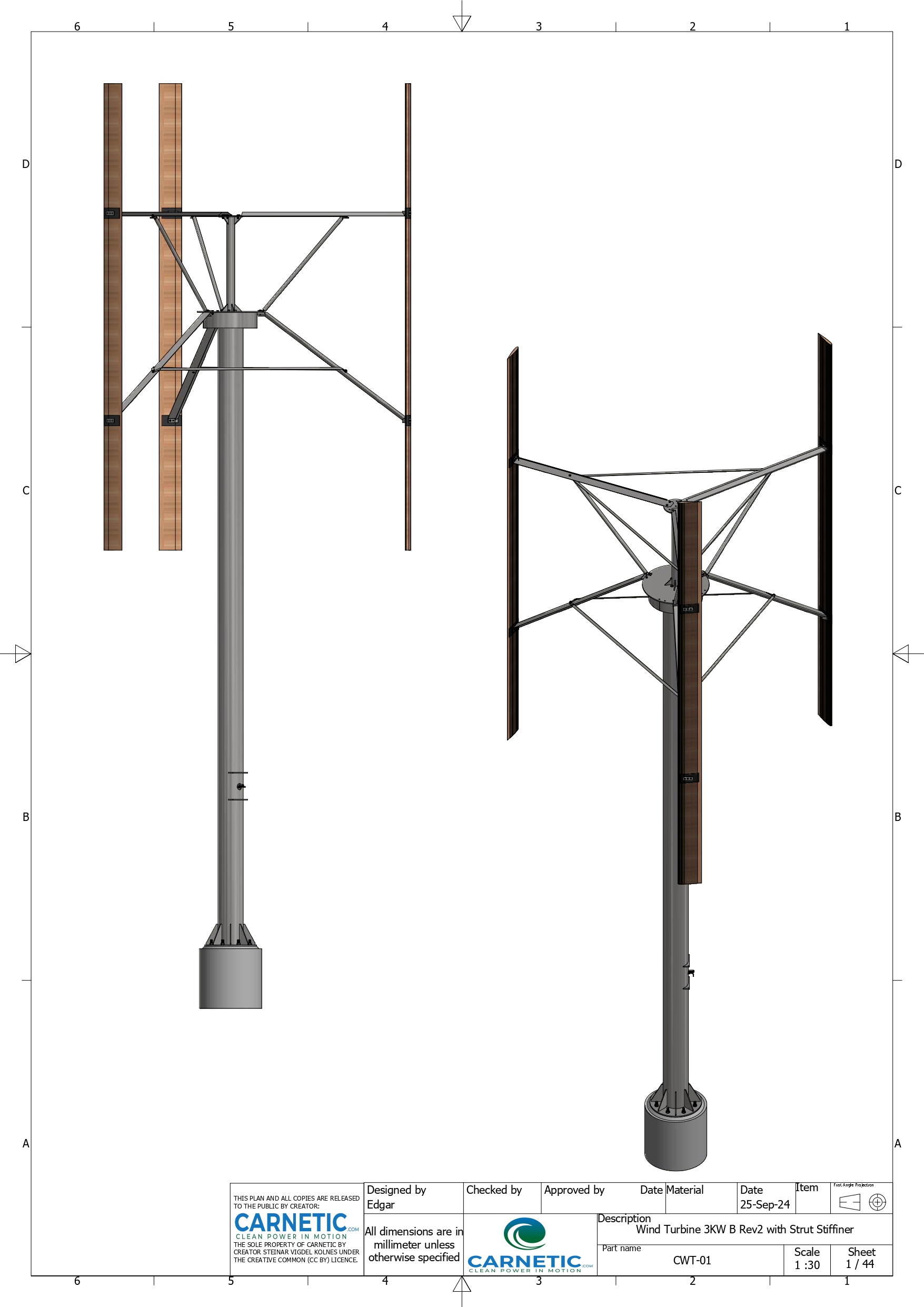

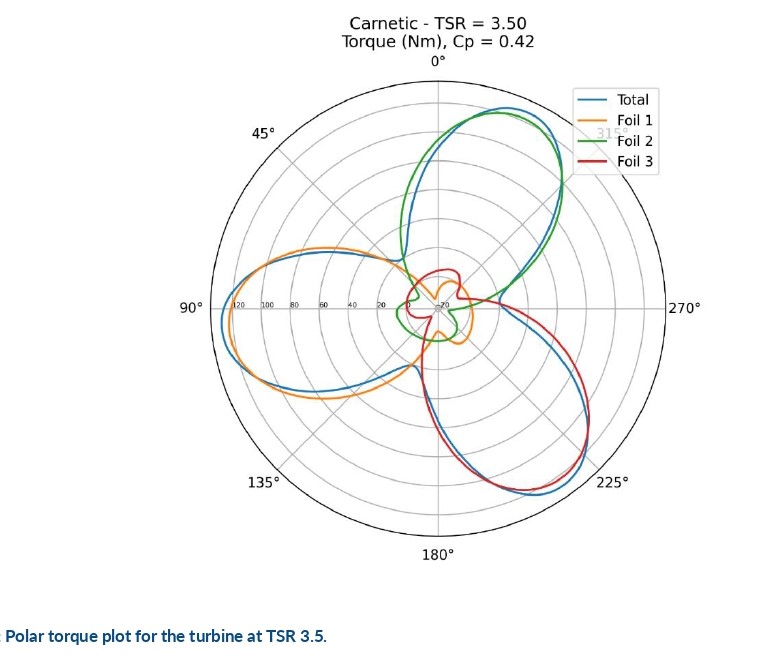

Download Free PDF Drawings for the Carnetic 316 Vertical Axis Wind Turbine (VAWT) This file includes complete and free PDF drawings for the Carnetic 316 Vertical Axis Wind Turbine (VAWT). The turbine features a wind-catching area of 15.75 m² and is capable of producing 3 kW at a wind speed of 9 meters per second (m/s), with a power coefficient (Cp) of 0.42 at the Power TakeOff (PTO). Under a Tip-Speed-Ratio (TSR) of 3.5, it can generate up to 6 kW at 12 m/s. These detailed turbine drawings are publicly available under the Creative Commons BY (CC BY) license. Carnetic, along with founder Steinar Vigdel Kolnes, requests that proper attribution be provided in accordance with the CC BY license terms.
